    • SuperDove Patch

      Process to design a commemorative patch for the first launch of the SuperDove EO Cubesat

    • Surf and Turf

      Design of board related things

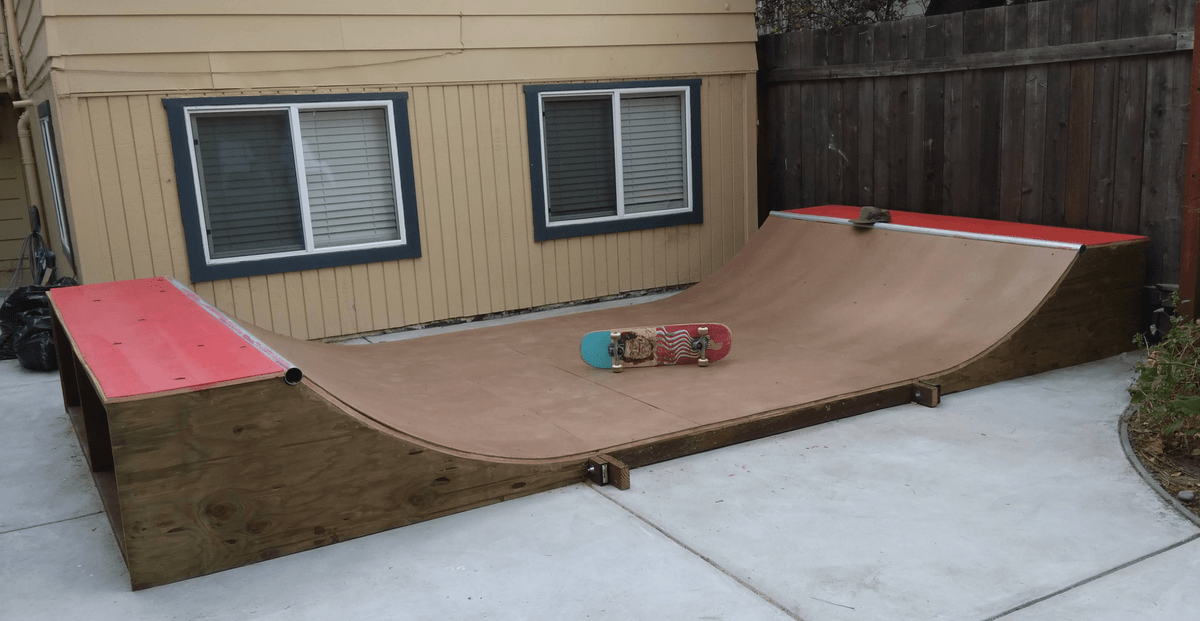

      MicroRamp

      With the on-shore winds of summer blowing across the peninsula, finding a good thrill can be tough. The surf is always blown out so I decided to recreate my previous mini ramp at a more "responsible" size.



      18' x 8' x 22"



      SF 2018

      The design splits into three separate pieces that are mounted on castor wheels. This allows for rapid ramp relocation just in case the landlord finds out.

      MiniRamp

      For the days when the waves are small, a convenient thrill was missing. After many months of planning and design, one Friday in June it finally became a reality. A mini-ramp was born.



      24' x 10' x 40"



      NYC 2015

      1100 lbs. of wood assembled in two weekends

      Designed in Solidworks

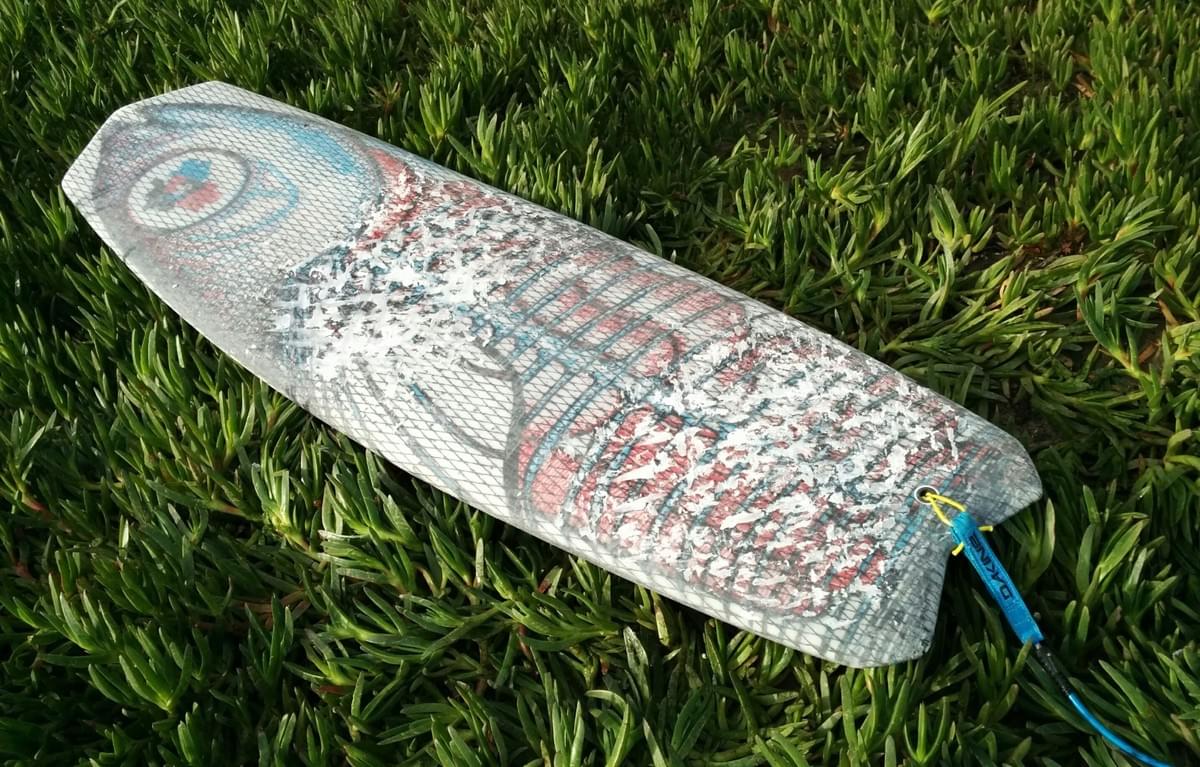

      Asym 5'-6" Surfboard

      After my Retro Fish was severely damaged by baggage handlers during my move back from California to NYC, I took the opportunity to strip its fiberglass and reshape it into a more unconventional asymmetric board.



      The mechanical advantage of my feet is asymmetrical, so why shouldn't my board be too!



      4th Self-Shaped Board



      2015

      Board contours defined In Situ

      Deck illustration completed with Molotow paint pens



      JulGuard 5'-9" Surfboard

      Third surfboard shaped, sized for Ocean Beach winter swells. Inspired by the Daniel Tomo's Vanguard, this board's contours and volume were fine tuned in Siemens NX and hand sanded into a US Blank. Composite layup with Composite Resource Epoxy, 3 Ply deck lamination and 2 Ply 6 oz. plain weave fiberglass on the underside.


      Drawings available here.



      2014

      Flying fish livery painted by means of three Molotow paint pens.

      Logo designed in Illustrator by Ewan Kay

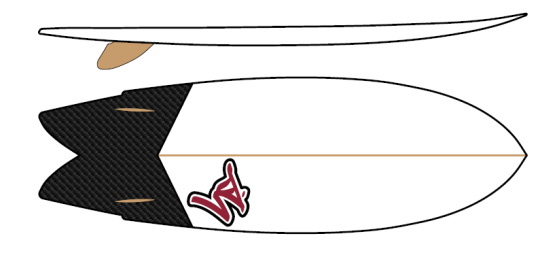

      Retro Fish 6'-1" Surboard

      With Rockaway just a short subway ride ride away, I was missing a surfboard. So I decided to shape my own. Hand shaped and then laminated with West Systems Epoxy. Composite layup: 6 oz. plain weave Fiberglass with 1 bias layer 6 oz. Carbon Fiber for Tail and Deck Patches. Wet sanded to 1200 grit finish by hand on the sidewalk in Bushwick.



      2013

      Board contours were designed in AutoCAD

      Deck and Tail designs drawn in Adobe Illustrator

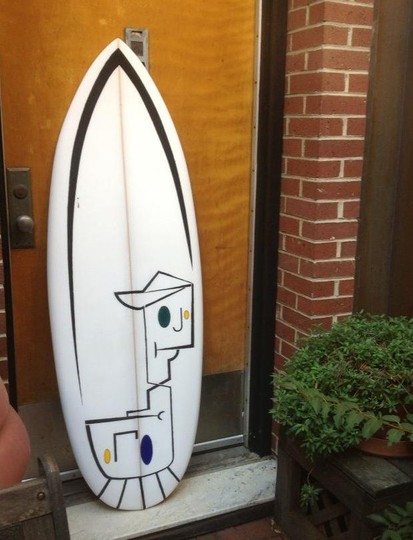

      Quad Fin 5'-3" Surfboard

      First attempt at sufboard shaping, for a friend. Board contours were designed in AKU Shaper and hand sanded into a US blank. Composite layup with West Systems Epoxy and 6 oz. plain weave Fiber Glass.


      2012

      Painted by means of laser cut template
      Deck design drawn in Adobe Illustrator

    • Product Design

      AA Batteries for a modern device.

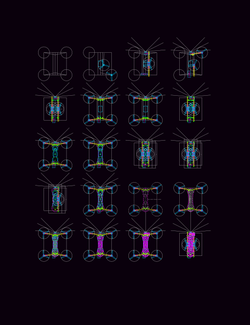

    • VTOL Light Utility Vehicle

      VTOL capable Separate Lift and Thrust (SLT) version of the LUV for entrance in the Airbus Cargo Delivery Contest

    • Branding Redesign

      A mechanical engineer completes a rebrand

      Show more

    • TerraSoar

      Using graphic design to describe a Senior Capstone in a concise manner.

      Semester 1

      Project scope, Aircraft performance estimation, Aerodynamic tool verification, and Loads estimation

      Semester 2

      Structural architecture, Component mechanical design, FEA, Vacuum bagging, Composite structures, Hotwire cutting

      Reflections

      An overlay of all hand sketches drawn during the extent of the TerraSoar project.

    • Cooper Union

      Drawing classes and free time

    • Bikes

      Urban transportation for all

      Shitibike

      Tired of the standard livery on my VISP TRX 999 I decided to repaint it. With the recent introduction of the citibike program in NYC, there was plenty of inspiration.



      Video of the shitibike in action here.



      2013

      The design was laid out in Illustrator with some help from Edbert. Frame was then stripped and repainted with Krylon rattle cans. The logo was masked with a custom cut package label while the remaineder of the bike was simply masked with tape.

      FOLDandFEND

      Commuting to school from Brooklyn, I needed a fender to protect my bum. Looking for a simplified solution, I designed my own fully recyclable bike fender. It mounts without any additional materials.



      2012

      Lasercut from cardboard

      Designed in AutoCAD

    • Photography

      Taken with a Minolta SRT-101 and Shown In Reverse Chronological Order
